ALL-IN-ONE SOUNDBAR




ALL-IN-ONE SOUND BAR

Resonado Labs

Industrial Design, Prototyping, Graphic Design







The trend by audio brands to develop all-in-one soundbars has been driven by a desire to create compact home theater solutions that better fit an increasingly minimal aesthetic. While these products boast high-quality sound in sleek singular units, the shift to slimmer product designs has limited the choices for driver solutions that can retain full-range sound.

In response, Resonado set out to design a true all-in-one soundbar prototype to highlight the advantages that Res-Core technology can provide for these applications. Tailored to optimize performance in a slimmer form factor, the proprietary motor and suspension structures offer significantly wider frequency bandwidth, better low-end frequency extension, and increased power handling resulting in higher max SPL.







The industrial design was crafted as a testament to the technology housed inside, devised to not be fashioned around the drivers, but rather from their unique qualities. Blending the elongated racetrack form with more organic cuts and edges, the design alludes to the shape and style of several components, allowing them to take center stage from within. As soundbar design has moved to predominantly minimal and simplistic shapes, Resonado’s All-In-One is meant to exhibit an original and authentic quality that parallels its performance in this category.








SPECIFICATIONS

Drivers

2 X NW7 Gen 2 woofers

2 X Silk Dome Tweeters

2 X Passive radiators

Enclosure

3D-Printed ABS

4 L (Internal volume)

700 x 127 x 70 mm (L x W x H)

Acoustic

40 Hz - 20 kHz

102 dB (Max SPL)

200 Watts Max

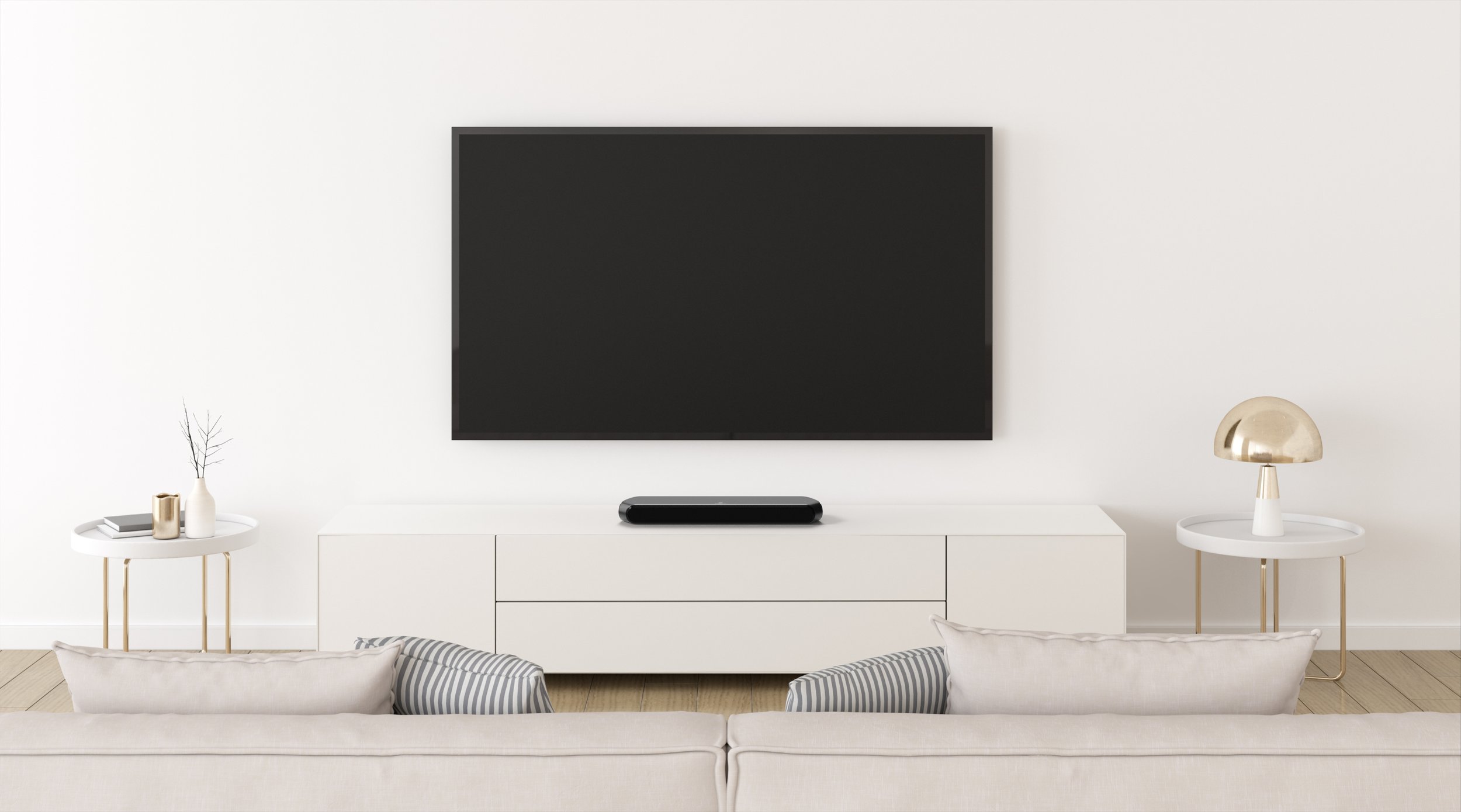

AIO - context - 2.164.jpg
